CNZPV®FEP Lined Flanged High Performance Butterfly Valve With Worm Gear Actuator

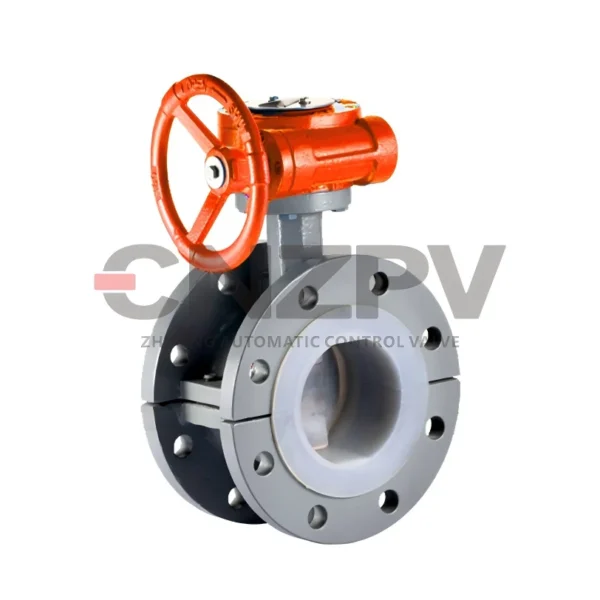

CNZPV®FEP Lined Flanged High Performance Butterfly Valve With Worm Gear Actuator

Categories:

FEP Lined Flanged High Performance Butterfly Valve With Worm Gear Actuator

Nominal Diameter: DN40-1200,NPS 1 1/2″-47″
Nominal Pressure: PN10,PN16,PN25,Class150
Connection Standard: HG20592-2009,ASME B16.5(Class 150),JIS B2220
Body Material: WCB,CF8,CF8M,CF3M
Temp. Range: -40℃~160℃,-40°F~320°F
Flow Characteristic: Equal percentage,Linear,Quick-Open
Face-To-Face:GB/T12221,ASME B16.10
Pressure Testing:GB/T13927-92,API598
Actuator: Pneumatic,Electric,Worm Gear Operated

Product Overview

The Worm Gear Operated FEP Lined Flanged High Performance Butterfly Valve can be used for shut-off and throttling control. It can ensure sealing more reliable and achieve non-leakage because of the fully lined fluorine materials both for seat and disc. The butterfly valve can realize rotary under the condition of low torque by the resilient-seated design , which means a longer service life ,so as to cost-effective of choosing actuator.

Performance Characteristics

The Worm Gear Operated FEP Lined Flanged High Performance Butterfly Valve features a valve body(seat) and inner parts(disc) that come into contact with the fluid, which are lined with PTFE (polytetrafluoroethylene)  through a high-temperature molding process. Additionally, the seat and disc of the metal valve body undergoes gear machining to ensure complete bonding between the lining material and metal, thereby enhancing both service life and performance. This valve effectively isolates corrosive media from contacting the valve body while preventing any corrosion of metallic materials within it. With excellent sealing performance,precise flow characteristics, it finds extensive applications in conditions involving strong corrosive media such as acids, alkalis, salts as well as volatile and penetrative gas or liquid media.

ADVANTAGES:
1.  Excellent resistance to chemical corrosion, low friction and operate in a wide range of temperatures.
2.  Small size and light weight, easy to install and maintenance
3. Excellent sealing performance with non-leak provides long service life.
4.Simple structure  and can be quickly Open or shut-off  by 90 degrees rotation.
5.Pneumatic and electric actuators can be configured according to customer requirements to meet the needs of remote control.

Technical Parameters

Body MaterialWCB,CF8,CF8M,CF3M
Seat MaterialWCB,CF8,CF8M,CF3M
Inner-Lined MaterialF40(ETFE),F46(FEP),PTFE(F4),PFA
Disc MaterialWCB,304,316,316L
Valve TypeStraight through type butterfly valve
Temp. Range-40℃~160℃,-40°F~320°F
Leakage LevelANSI B16.104 Grade IV
Flow CharacteristicEqual percentage,Linear,Quick-Open
EndsStandard Flang Type
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Available ActuatorsPneumatic Piston Type,Electric Type
Worm Gear Operated Type

As:chloroacetic acid, liquid chlorine, chlorine gas, bromine and other strong corrosive material, the selection of lining materials must be carefully.

Fluid’s Temp Medium Characteristics Location Lining Material Forming Process
≤80℃ General Medium General Position F40(ETFE) Injection Processing
≤120℃ Strong Corrosive Medium Special Position F46(FEP) Mould Processing
≤160℃ Strong Corrosive Medium Special Position PFA Mould Processing
