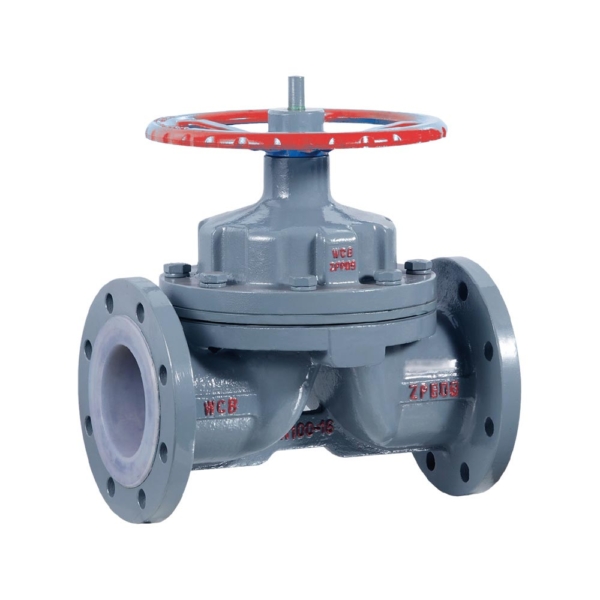

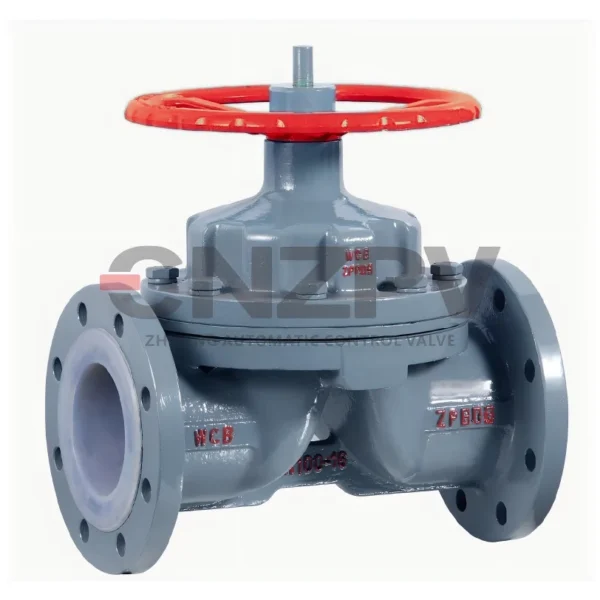

CNZPV®Manually-Operated Fluorine Lined Diaphragm Valve

CNZPV®Manually-Operated Fluorine Lined Diaphragm Valve

Categories:

Manually-Operated Fluorine Lined Diaphragm Valve

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10,PN16,PN25,CL150
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF3,CF8M,CF3M
Lining Material: F40(ETFE),F46(FEP),PFA
Temp.Range: -30℃-180℃,-22°F一356°F
Face-To-Face:GB/T1221,HG/T3704,ASME B16.10
Pressure Testing:GB/T13927,API598
Valve Type:Weir Type,Straight Flow Type
Actuator: Pneumatic,Electric,Manually Operated

Product Overview

CNZPV’s Manually-Operated Fluorine Lined Diaphragm Valve is a special form of ON-OFFf valve, disc is a diaphragm made of corrosion-resistant soft material,the diaphragm separates the bottom body cavity from the top bonnet cavity, so that the stem, metal disc and other parts above the diaphragm are not subject to media corrosion,so fluorine lined diaphragm valve eliminate the packing seal structure, and media leakage will not happen.

Performance Characteristics

The Advantages:

1.Corrosion resistance: corrosion resistance of almost all media (including concentrated nitric acid and aqua regia).

2.The diaphragm of using FEP/FPA and rubber composite, suitable for variety of corrosive media.

3.100 percent gas seal can be achieved to ensure no leakage in outlet port.

4.No direct contact between metal parts and medium slurry.

5.Bi-directional and full flowing path can reduce pressure drop, weaken abrasion and prolong the service working life.

6.OEM/ODM are acceptable.

Technical Parameters

Body/Upper Bonnet MaterialWCB,CF8,CF3,CF8M,CF3M
Disc MaterialCF8,CF3,CF8M,CF3M
Inner-Lined MaterialF40(ETFE),F46(FEP),PFA
Handwheel  MaterialWCB
Stem Material2Cr13,CF8,CF3,CF8M,CF3M
Diaphragm MaterialFEP(F46),CR,PFA,EPDM
Valve TypeWeir Type,Straight Flow Type
Temp. Range-30℃-180℃, -22F-356F
Packing TypeNon-Packing
Leakage LevelANSI B16.104 Grade VI
Flow CharacteristicON/OFF
EndsFlang(RF/FM),ANSI B16.5
Design Standard:GB/T12239
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Available ActuatorsPneumatic Diaphragm Type/Pneumatic Piston Type
Electric Type
Manually Handwheel Operated
………
