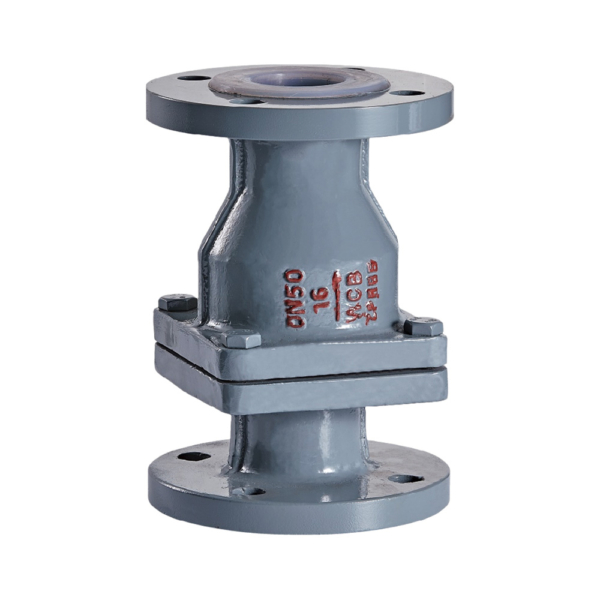

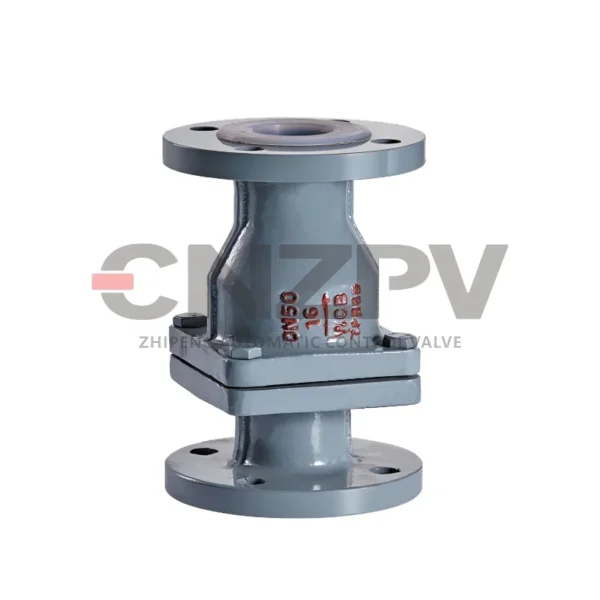

Fluorine Lined Swing Check Valves(H44)

Nominal Diameter: DN15-200,NPS 1/2″-8″
Nominal Pressure: PN10,PN16,PN25,CL150
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF3,CF8M,CF3M
Lining Material: F40(ETFE),F46(FEP),PFA
Temp.Range: -30℃-180℃,-22°F一356°F
Face-To-Face:HG/T3704,GB/T1221,ASME B16.10
Pressure Testing:GB/T13927-92,API598

Product Overview

Fluorine Lined Swing Check Valve installation position is not restricted, usually installed in the horizontal pipeline, but can also be installed in the vertical pipeline or dumping pipeline. Swing check valve valve flap around the rotary axis for rotary movement, its fluid resistance is generally smaller than the lift check valve, it is suitable for larger caliber occasions. Widely used in petroleum, chemical, pharmaceutical, electric power industry and other working conditions of the pipeline.

Performance Characteristics

Fluorine Lined Swing Check Valve product structure is compact and reasonable, reliable sealing, reliable performance, small size, light weight, wide range of applications, the valve flap closes quickly, sensitive action, the closing impact is small, not easy to produce water hammer phenomenon, the flow path is smooth, fluid resistance is small.

Technical Parameters

Body/Upper Bonnet Material	WCB,CF8,CF3,CF8M,CF3M
Disc Material	CF8,CF3,CF8M,CF3M
Inner-Lined Material	F40(PTFE),F46(FEP),PFA
Valve Type	Swing Check Valve
Flange Connection Standard	HG20592-2009,ANSI B16.5,JIS B2220
Temp. Range	-30℃-180℃, -22F-356F
Leakage Level	ANSI B16.104 Grade VI
Temp. Range	-30℃-180℃, -22F-356F
Ends	Flang(RF/FM)
Leakage Level(ANSI)	ANSI B16.104 Grade VI
