CNZPV®Pneumatic Sleeve-Guided Regulating Globe Valve-ZP913

CNZPV®Pneumatic Sleeve-Guided Regulating Globe Valve-ZP913

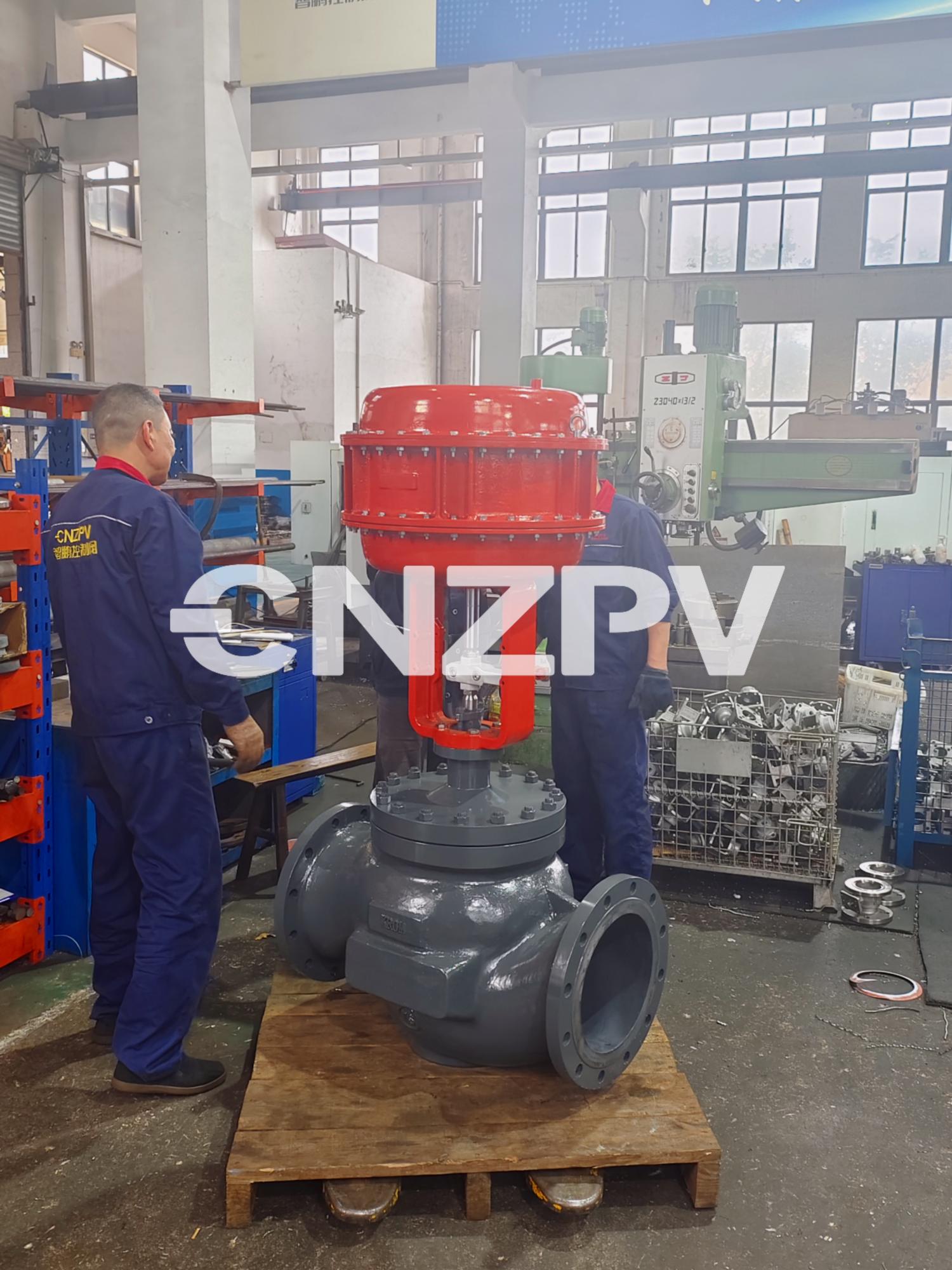

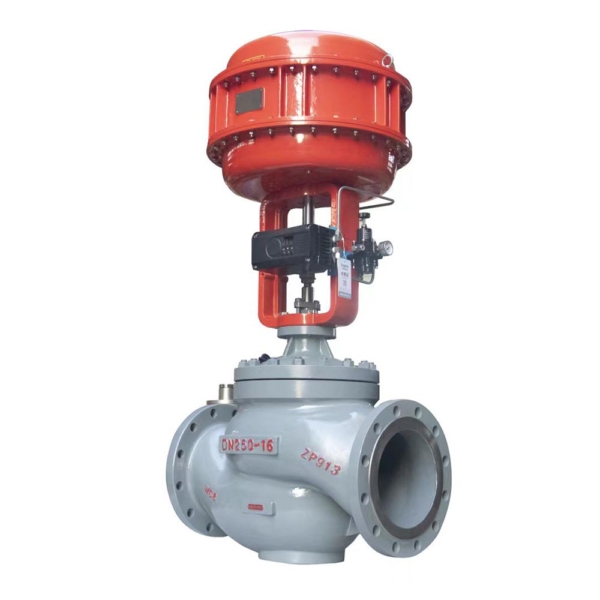

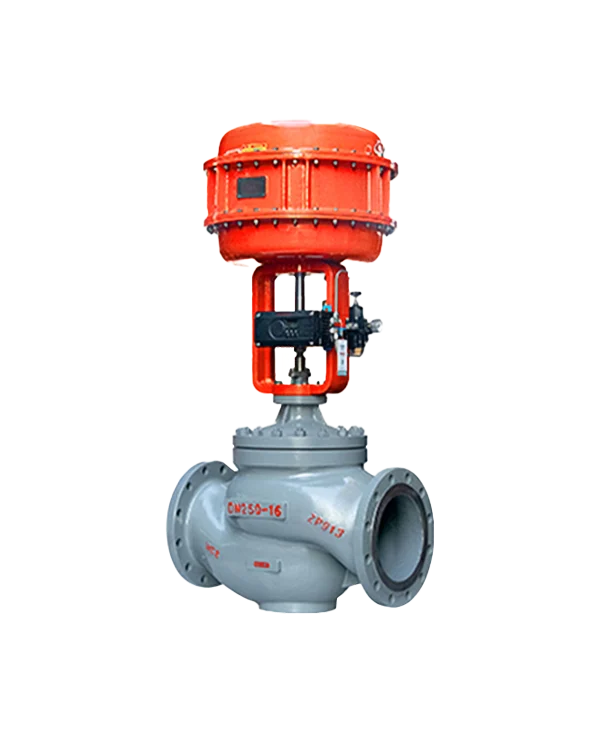

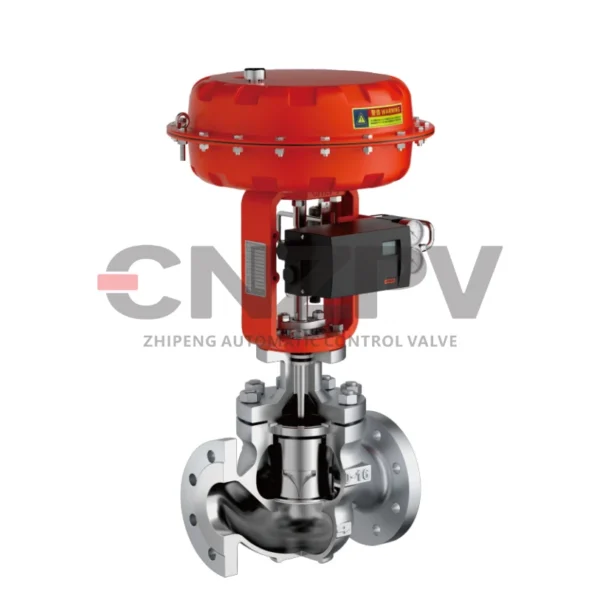

Pneumatic Sleeve-Guided Regulating Globe Valve(ZP913)

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10-PN100,CL150-CL600
Connection Standard: HG20592-2009, ANSI B16.5,JIS B2220
Body Material: LCB,WCB,WC6,WC9,CF8,CF3,CF8M,CF3M
Trims Material: F304,F316,Etc.
Packing Type: Soft-Sealing, Metal-to-Metal
Typies of Bonnet: Standard,Extension,Bellows Sealing.
Temp. Range: -196℃~425℃,-320°F~797°F
Flow Characteristic: ON-OFF,Equal percentage,Linear
Actuator: Penumatic, Electric
ISO 5211 ACTUATOR ASSEMBLY

Product Overview

The ZPL913 series sleeve-guided control valve is specially designed using recent advances in control valve technology. It is used to control a wide variety of relatively clean liquids and gases at high pressure differentials. The sleeve-guided control valve is suitable for controlling medium’s flow rate, pressure and high load conditions, The fluid channel as S-shape, allowing large flow through with high accuracy of flow adjustment.The design of the ZPL913(drilled-hole-sleeve)valve is primarily used for severe service applications requiring anti-cavitation or low-noise trim. In most cases, high pressure drop in process conditions may cause erosion, noise or vibration, which can affect process control. The ZPL913 is a good solution to this severe service application.This valve can be used in different industrial fields, such as: chemical, power, paper, food, metallurgy, mining and so on.

Users can select based on the operating conditions (pressure differential, temperature, medium state, medium flow direction, installation method) and the required leakage rate.

Performance Characteristics

The ZPL913 series sleeve-guided control valve ,The seat adopts the clamping structure, when the valve bonnet is tighten, the spool and the seat will be automatically aligned.The strong sleeve protects the valve and internal parts from the damage of flash and cavitation.



The Advantages Of ZPL913:

1.Both sides of the matel seat are sealed processing.When an internal leak happened after long-time use, It can be solved to reverse the seat;
2.Spool and stem is integrated processing, It can ensure the robustness and reliability under the condition of high pressure difference;
3.ZPL913 takes a balanced spool design, suitable for large pressure difference range conditions;
4.The internal parts surface are treated such as polishing, nitriding and overlaying of STL alloy, which can improve the reliability and service life of the valve;
5.Top-entry construction and quick-change trim for easy maintenance;
6.A variety of valve bonnets are available: Bellows bonnet(high sealing requirements condition);Extended bonnet(low temperature condition);Radiation Fin Type bonnet(high temperature condition)





Technical Parameters

Body/Bonnet MaterialLCB,WCB,WC6,WC9,CF8,CF3,CF8M,CF3M
Spool MaterialCF8,CF3,CF8M,CF3M
Sleeve MaterialCF8、CF3、CF8M、CF3、M17-4PH、STL Alloy
Stem Material17-4PH ASTM A276 F304
Seat MaterialSS+PTFE/304,316
Bellows Pipe MaterialCF8,CF3,CF8M,CF3M
Valve TypeStraight-through type, Angle-through type
Jacket insulation type
Bonnet TypeStandard,Extended,Bellows Sealed,Radiation Fin Type
Temp. Range-196℃ to 425℃,-320°F to 797°F
Leakage LevelANSI B16.104 class IV(Option:ANSI Class V,VI)
Flow CharacteristicEqual percentage,Linear,Quick-Open
EndsFlang(RF/FM)、Welding
Rangeability30:1, 50:1
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Available ActuatorsPneumatic Diaphragm Type(ZP6100)
Pneumatic Piston Type(ZP6200)
Electric Type
