CNZPV® Fully Fluorine-Lined Pneumatic 3-Way Multi-Port Reversing Ball Valve(T/L channel)-ZPR730F

CNZPV® Fully Fluorine-Lined Pneumatic 3-Way Multi-Port Reversing Ball Valve(T/L channel)-ZPR730F

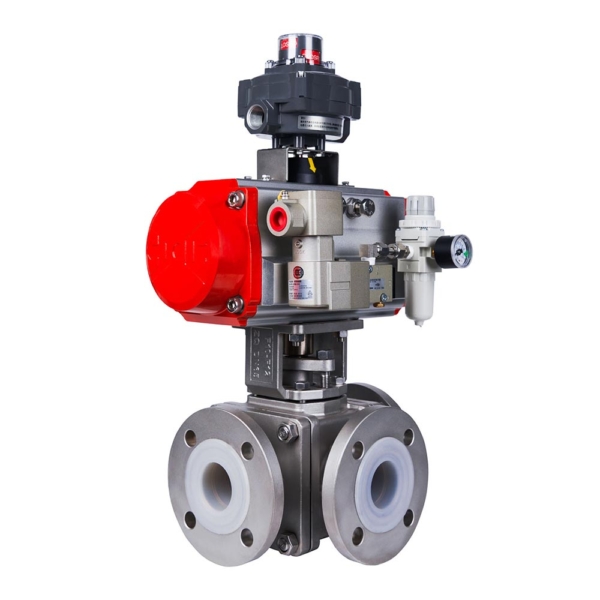

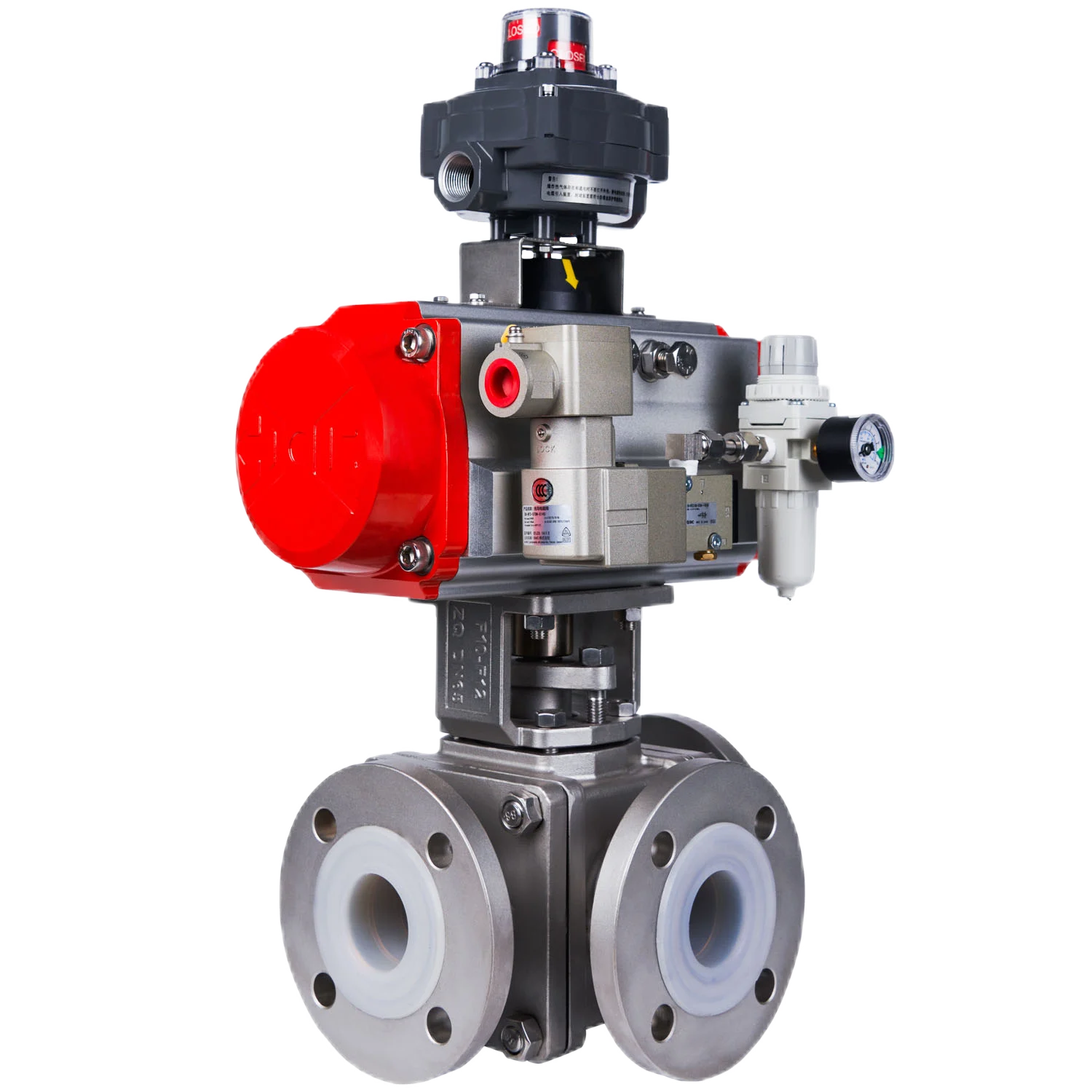

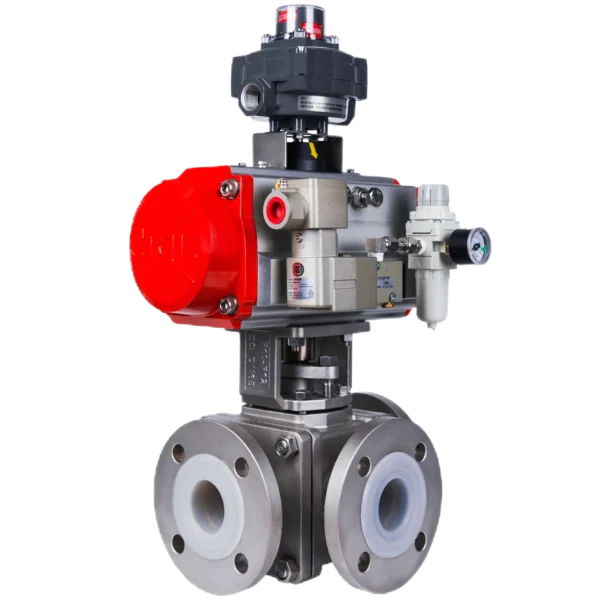

Fully Fluorine-Lined Pneumatic 3-Way Multi-Port Reversing Ball Valve(T/L channel)-ZPR730F

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10,PN16,PN25,CL150,10K
Connection Standard: HG20592-2009,ANSIB16.5,JIS B2220
Body Material: WCB,CF8,CF3,CF8M,CF3M
Lining Material: FEP(F46),PFA
Temp.Range: -30℃-180℃,-22°F-356°F
Flow Characteristic:Linear,Quick-Open,ON/OFF
Actuator: Pneumatic,Electric
ISO 5211 ACTUATOR ASSEMBLY

Product Overview

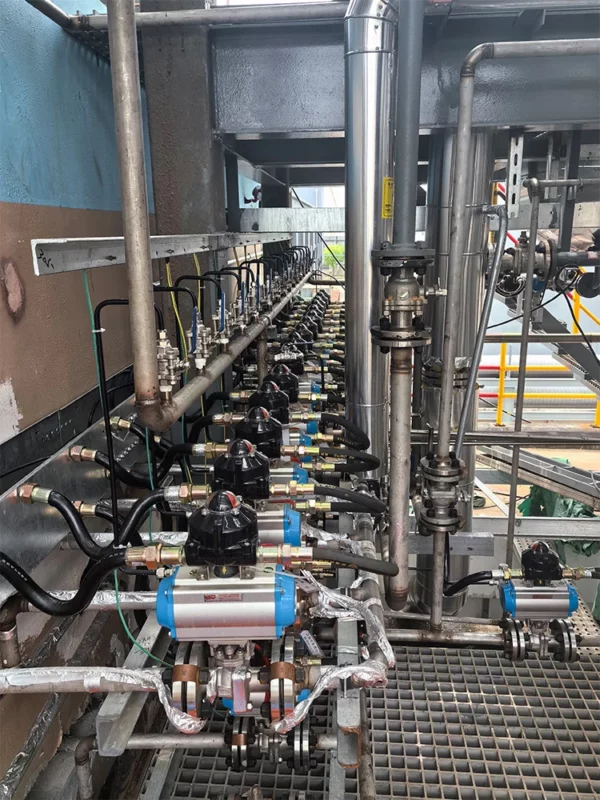

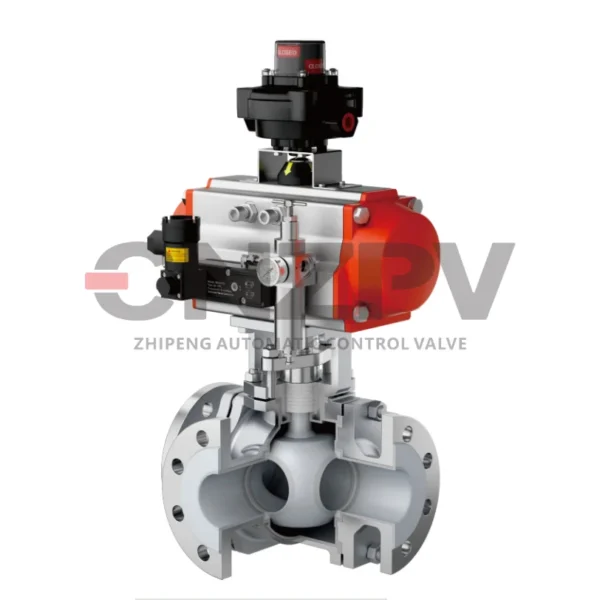

The ZPR730F Fully Fluorine-Lined Pneumatic 3-Way Multi-Port Reversing Ball Valve(T/L channel),It’s composed of angular stroke piston type pneumatic actuator and 3-way ball valve, which is a rotary type cutting and regulating valve, with the advantages of completely shut-off, compact structure, light weight, easy maintenance and so on. The inner wall of the valve body in contact with the fluid and the internal components of the valve are lined with fluoroplastic(PTFE/FEP/PFA) by high temperature molding process, which can completely cut off the contact between the corrosive medium and the surface of the components in the valve body.The ZPR730F 3-way valve can flexibly control the confluence or diversion of the medium in the pipeline.Can be applied to acid , alkali and other strong corrosive conditions, and toxic, volatile, easy to penetrate gas and/or liquid media controls.

Performance Characteristics

The ZPR730F Fully Fluroine-Lined Pneumatic 3-Way Multi-Port Reversing Ball Valve(T/L channel) features a valve body and inner parts that come into contact with the fluid, which are lined with fluoroplastic through a high-temperature molding process. Additionally, the inner cavity of the metal valve body undergoes gear machining to ensure complete bonding between the lining material and metal, thereby enhancing both service life and performance. This valve effectively isolates corrosive media from contacting the valve body while preventing any corrosion of metallic materials within it. With excellent sealing performance, high-response,precise flow characteristics, it finds extensive applications in conditions involving strong corrosive media such as acids, alkalis, salts as well as volatile and penetrative gas or liquid media.

ADVANTAGES:
1. Corrosion-resistant: It can withstand the corrosion of various media, including concentrated nitric acid and aqua regia.
2. Full-port diameters minimize pressure drops with high flow capacity and unrestricted medium flow direction.
3. Excellent sealing performance: Utilizes a combination structure of imported V-shape packing gland to ensure zero external leakage.
4. A variety of actuators and accessories can be configured for accurate alignment and increased cycling life.
5.Simple structure and easy maintenance
6.Single acting cylinder or double acting cylinder can be optioned.

Technical Parameters

Body/Upper Bonnet MaterialWCB,CF8,CF3,CF8M,CF3M
Stem/Plug MaterialCF8,CF3,CF8M,CF3M,TA2,HC
Inner-Lined MaterialF46(FEP),PTFE(F4),PFA
Seat/Packing MaterialPTFE
Valve TypeMulti-Port Ball Valve
Temp. Range-30℃~180℃,-22°F~356°F
Leakage LevelANSI B16.104 Class VI
Flow CharacteristicLinear,Quick-Open,ON/OFF
EndsFlang(RF/FM)
Flange Connection StandardHG20592-2009,ANSI B16.5,JIS B2220
Available ActuatorsPneumatic Piston Type
Electric Type

As:chloroacetic acid, liquid chlorine, chlorine gas, bromine and other strong corrosive material, the selection of lining materials must be carefully.

Fluid’s Temp Medium Characteristics Location Lining Material Forming Process
≤80℃ General Medium General Position F40(ETFE) Injection Processing
≤120℃ Strong Corrosive Medium Special Position F46(FEP) Mould Processing
≤160℃ Strong Corrosive Medium Special Position PFA Mould Processing(With Bracket)
