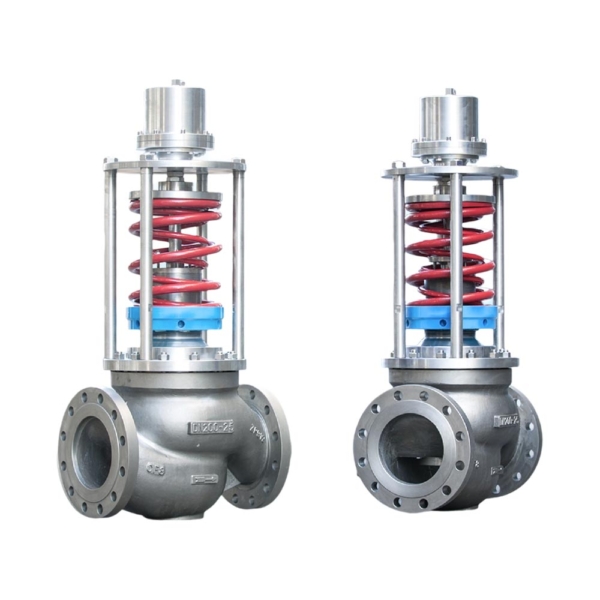

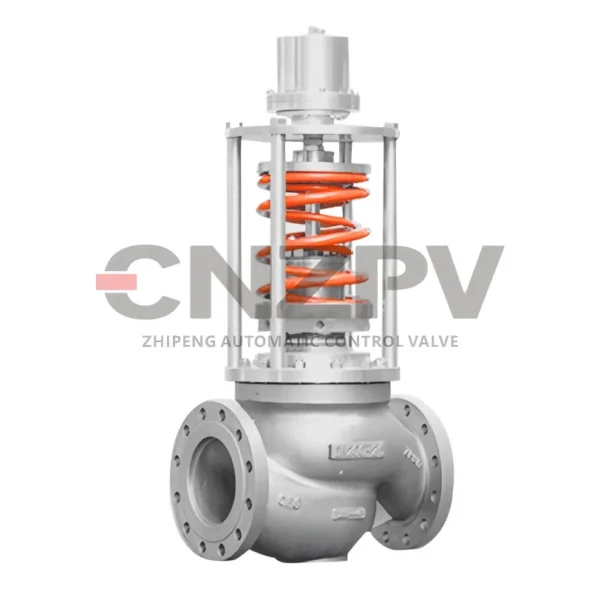

CNZPV®Self-Operated Steam Pressure Regulating Valve-ZZMP

CNZPV®Self-Operated Steam Pressure Regulating Valve-ZZMP

Self-Operated Steam Pressure Regulating Valve(ZZMP)

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10,PN16,PN25
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF8M,CF3M
Spool&Seat Type: Single-Seat, Sleeve-Guided
Packing Type: Soft-Sealing,Metal-Sealing
Temp. Range: ≤350℃(≤662°F)
Flow Characteristic: ON-OFF(Quick-Open)
Actuator Type: Pneumatic Diaphragm/Piston
Acting Form:
Pressure release @ Inlet Side: (K-Modle)
Pressure reduce @ Outlet Side: (B-Modle)

Product Overview

The ZZMP Self-Operated Steam Pressure Regulating Valve,It’s no need an external power supply or air source, and uses the pressure of the medium of the controlled pipeline as a power source to control the position of the valve spool,  so as to change the pressure difference and flow at both ends, to achieve the purpose of controlling the pressure stability at outlet side (B-Modle) or pressure relief at inlet side (K-Modle). It has the advantages of quick response, good sealing performance, small pressure fluctuation, etc., Widely used in various industrial pipeline for gas, liquid and steam media pressure relief (pressure reduction) automatic control.

Performance Characteristics

The acting form of ZPL630 have 2 typies,As following:

1.Outlet Side Pressure Regulating Valve (B-Modle):The valve’s spool initial setting position: OPENED.

2.Inlet Side Pressure Regulating Valve (K-Modle):The valve’s spool initial setting position: CLOSED.

Technical Parameters
