CNZPV®Self-Actuated Nitrogen Seal Micro-Pressure Regulator-ZZYVP

CNZPV®Self-Actuated Nitrogen Seal Micro-Pressure Regulator-ZZYVP

Self-Actuated Nitrogen Seal Micro-Pressure Regulator -ZZYVP

Nominal Diameter: DN15-350,NPS 1/2″-14″
Nominal Pressure: PN10,PN16,PN25
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF8M,CF3M
Spool&Seat Type: Single-Seat, Sleeve-Guided
Packing Type: Soft-Sealing,Metal-Sealing
Temp. Range: ≤350℃(≤662°F)
Flow Characteristic: ON-OFF(Quick-Open)
Actuator Type: Pneumatic Diaphragm/Piston
Acting Form:
Pressure release @ Inlet Side: (K-Modle)
Pressure reduce @ Outlet Side: (B-Modle)

Product Overview

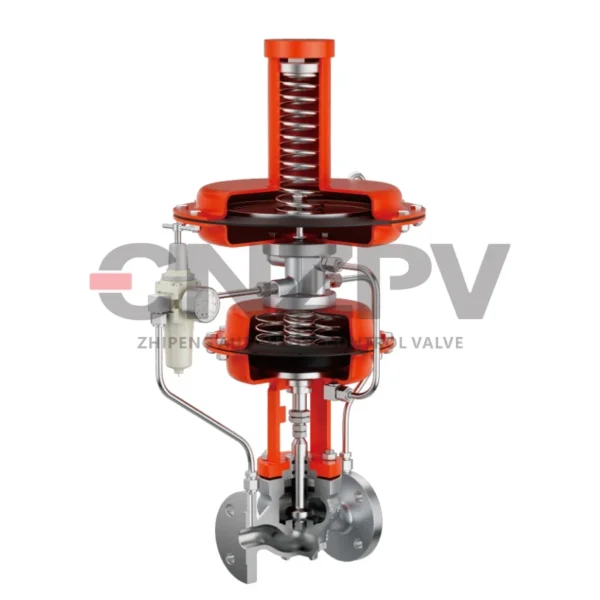

The ZZYVP self-actuated nitrogen seal valve is composed of components such as the regulating valve body assembly, actuator, pressure preset spring, pilot, pressure tapping pipe and so on. It is an energy-saving product that doesn’t require additional energy sources and uses the pressure of the regulated medium itself as the power source to automatically regulate and maintain a constant pressure. This regulating valve has a very high control accuracy and is mainly used to keep the pressure of the protective gas (such as nitrogen) on the top of the container constant, so as to prevent the materials in the container from directly contacting with the air, avoid the volatilization and oxidation of the materials and ensure the safety of the container. It is especially suitable for the gas seal protection systems of various large storage tanks. This product features energy saving, sensitive operation, reliable running, and convenient operation and maintenance.

There are the most types of self-operated pressure regulating valves, including the following types:
●ZPL610 (ZZYP, ZZYM) self-operated pressure regulating valve
●ZPL620 (ZZVP, ZZVM) self-operated micro-pressure regulating valve

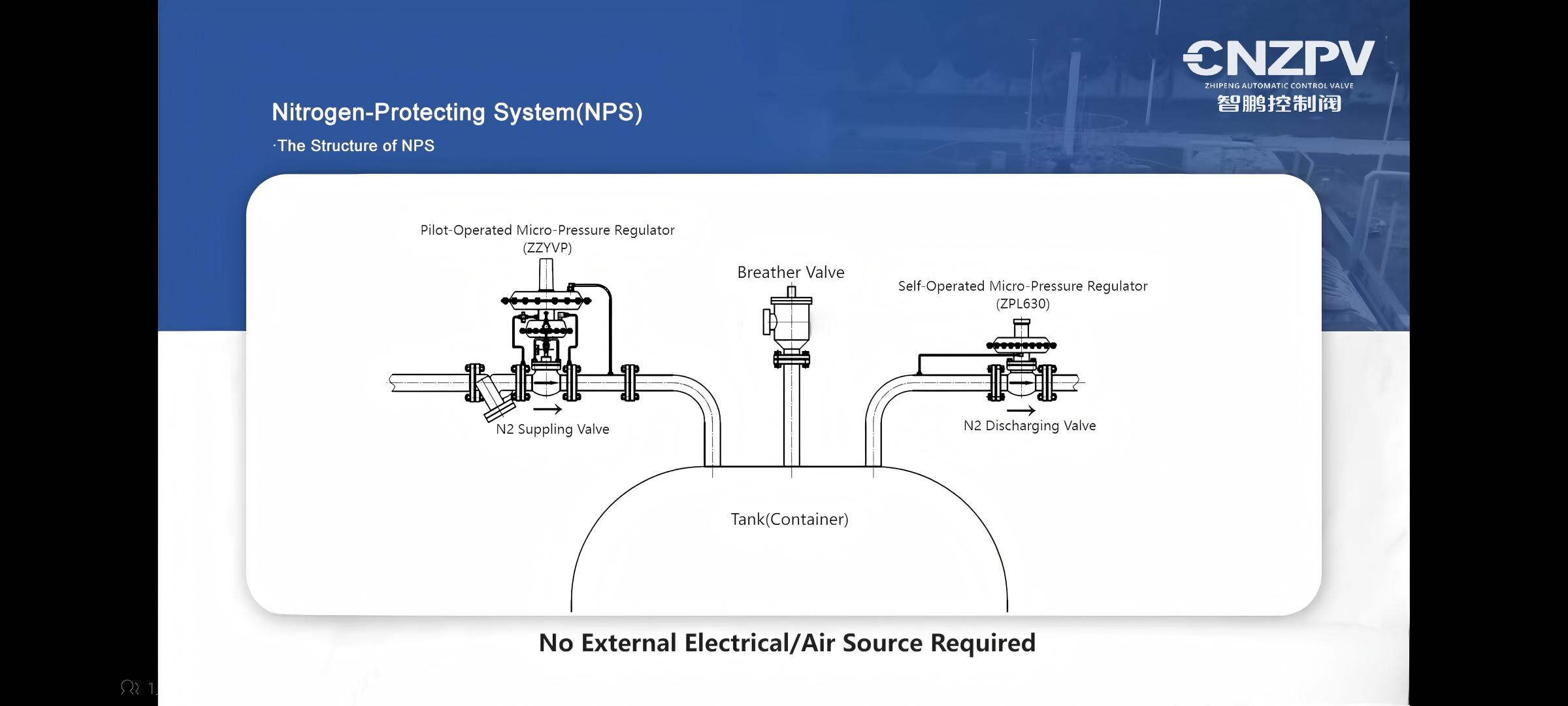

●ZPL630 (ZZYVP-BII) pilot pressure regulating valve (nitrogen sealing device)
●ZFQ explosion-proof fire-blocking breathing valve

Performance Characteristics

The ZPL630 self-actuated pressure regulating valve with pilot operation (referred to as pressure valve) does not require external energy and uses the energy of the medium to be regulated as the power source to achieve automatic regulation. This product adopts a single-seat valve fast-opening flow characteristic regulation mechanism, with stable medium pressure, high regulation accuracy, safe and reliable sealing performance, and the set value can be adjusted arbitrarily during operation. Therefore, it is suitable for various industrial furnace combustion system fuel gas, petroleum products or oil tank protection gas (nitrogen sealing) and heat treatment protection gas micro-pressure automatic regulation occasions.
1. No external driving energy is required, and the equipment cost is low.
2. No filler, no friction active components, sensitive adjustment, high control accuracy.
3. The set point is adjustable and has a wide range, which is convenient for users to adjust continuously.
4. The pressure reduction ratio is particularly large, for example, 0.8MPa before the valve, 50Pa after the valve, and the pressure difference ratio reaches 1600.





Technical Parameters

Main parts materials

Name of partsMaterials
BodyZG230-450、ZG0Cr18Ni9、ZG0Cr18Ni12Mo2
Core1Cr18Ni9、0Cr18Ni12Mo2(bead welding)、PTFE
Seat1Cr18Ni9、0Cr18Ni12Mo2(bead welding)
Valve Stem1Cr18Ni9、0Cr18Ni12Mo2
Membrane coverQ235、Q235 PTFE(Coating)
Spring60Si2Mn
Seal ring/gasketStainless Steel+Flexible Graphite
PackingPTFE+Flexible Graphite
Bellows PipeStainless Steel
DiaphragmNitrile, Ethylene propylene, Fluorine, Oil-resistant rubber
0-RingPTFE、Oil-resistance Rubber

Main technical parameters and performance indicators

Nominal diameter DN(mm)20253240506580100125150
Seat diameter D(mm)61520253240506580100125150
Rated flow coefficient (Kv)0.3245812.520325080125160320
Pressure adjustment range (KPa)Select from 0.5-100
Nominal pressure PN(MPa)1.0 1.6
Temperature of the medium being regulated (℃)-40~80
Flow characteristicsQuick-Opening
Adjustment error (%)±5
Allowable pressure drop (MPa)1.61.61.10.40.6
Actuator membrane effective area (cm²)200280400
Allowable leakageHard valve core: Class IV (10 – 4 × Kv)     Soft valve core: Zero leakage
